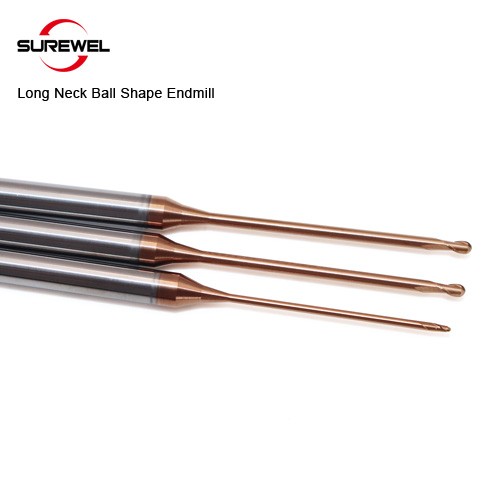

2 Flute Long Neck Micro Diameter Cutter R0.15-R1.5

2 Flute Long Neck Micro Diameter Cutter R0.15-R1.5

Material：Carbide
Diameter：D0.2~3.0mm
Overall Length：50mm 60mm
Handle Diameter：4mm
Coating：AlTiN/AlTiSiN

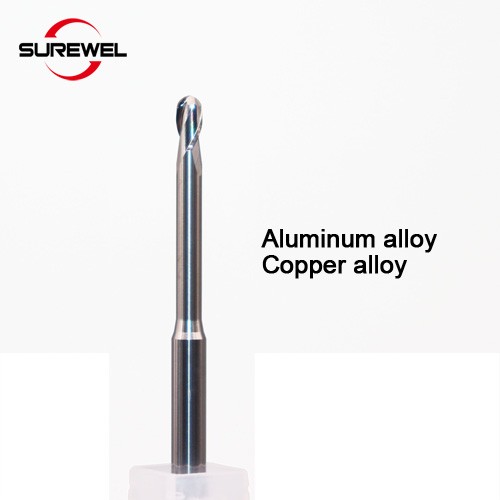

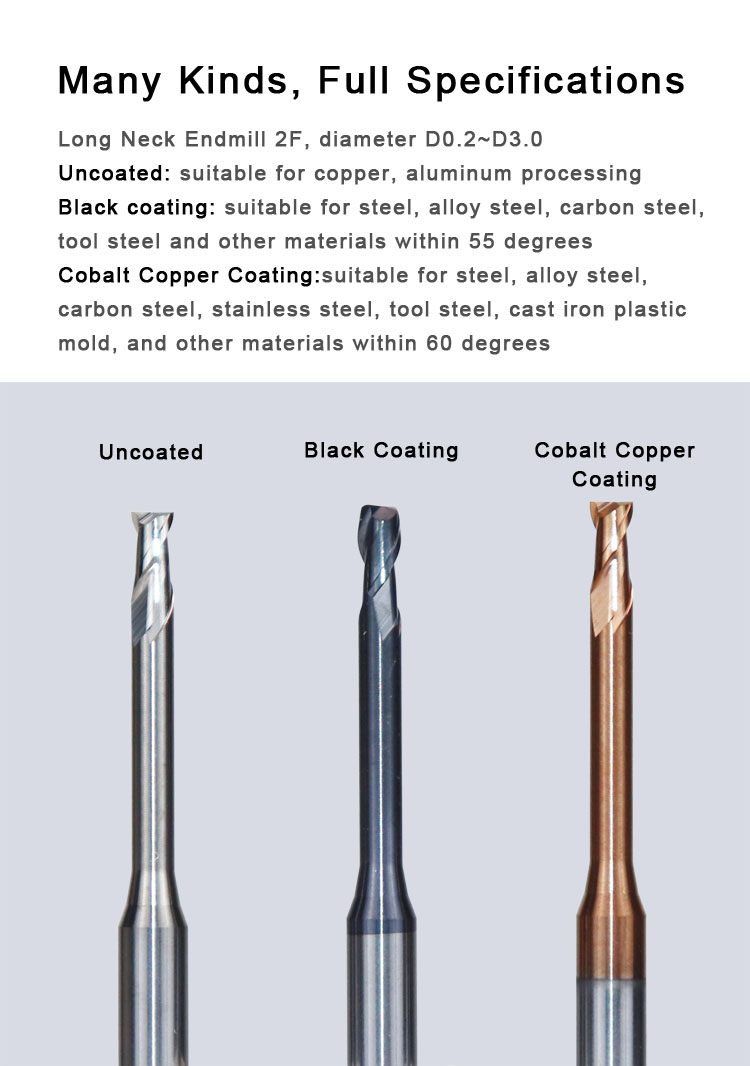

Uncoated：Suitable for processing copper,aluminum,cast copper and other metal materials;

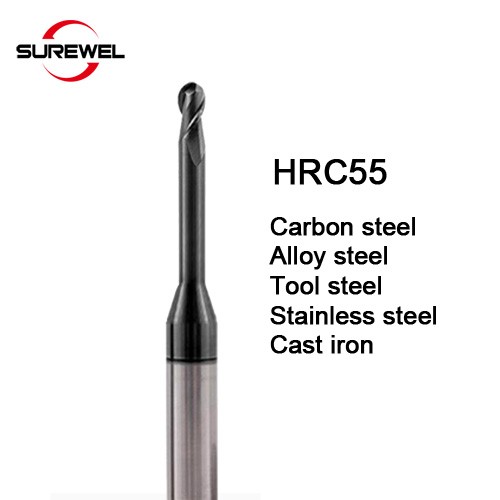

AlTiN：Black coating is suitable for steel, alloy steel, carbon steel, tool steel and other materials within HRC55.

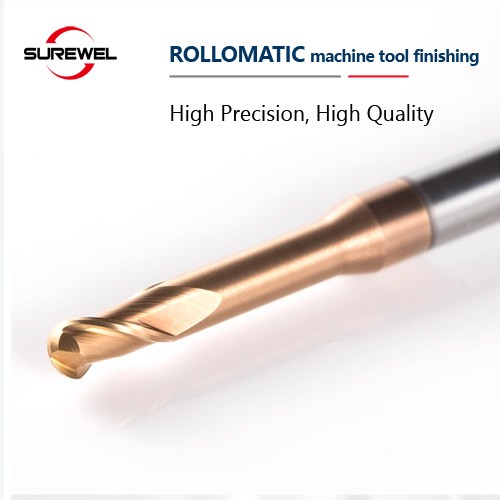

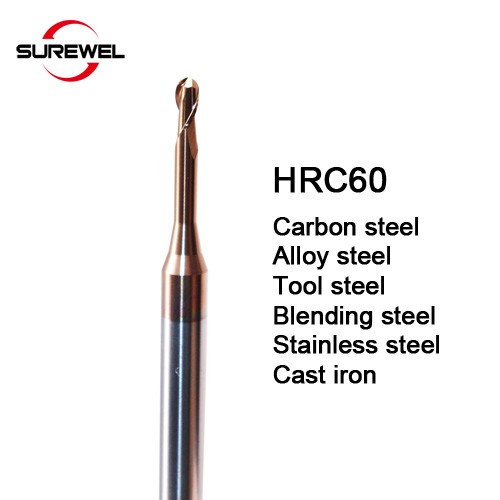

AlTiSiN：Cobalt copper coating is suitable for steel, alloy steel, carbon steel, stainless steel, tool steel, cast iron plastic mold, and other materials within HRC60.

Product Description:

Material: Tungsten carbide Product size analysis

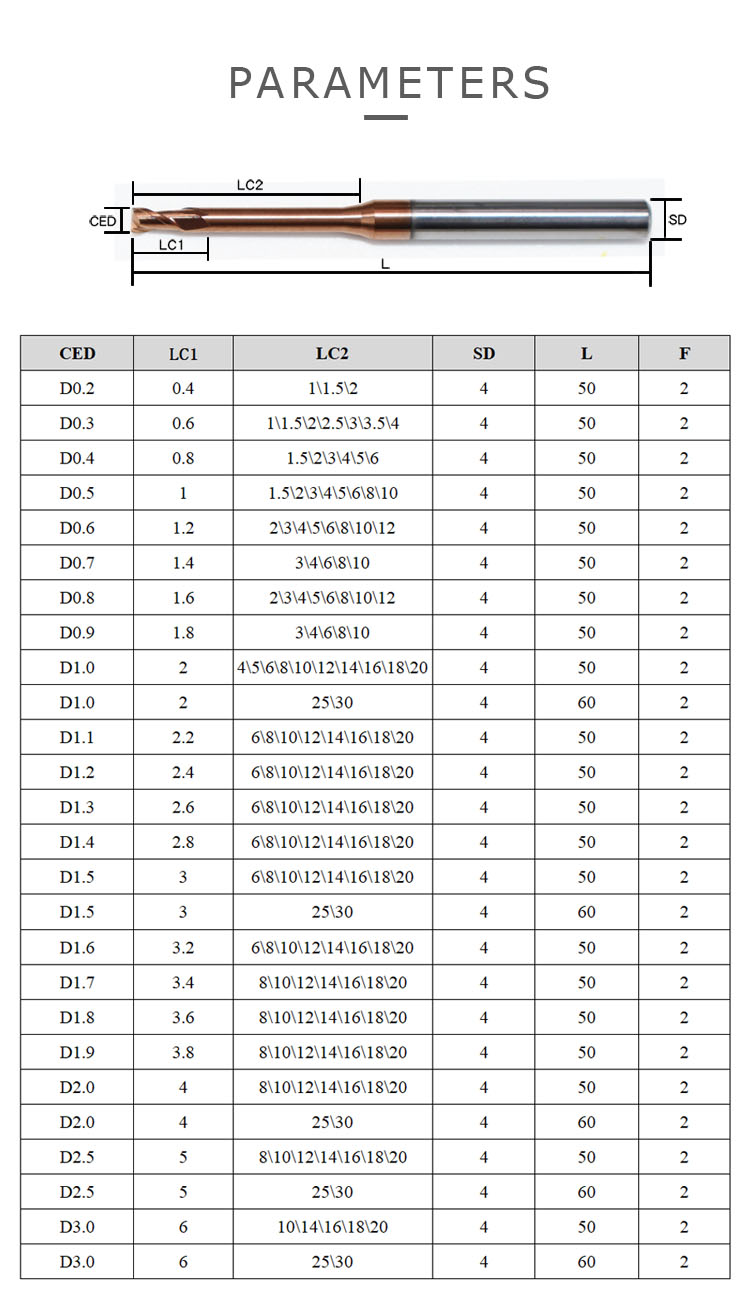

(1) Core size: Blade diameter range: R0.1~R1.5

Cutting edge structure: blade length 0.2mm, avoidance 0.2mm, neck diameter 0.16mm, suitable for deep and narrow groove processing.

Clamping specification: shank diameter 4mm, total length 50mm, suitable for ER-11 chuck. Flute design: two edges, balancing cutting efficiency and chip removal capacity.

(2) Coating characteristics:

AlTiN coating: Compatible with steel/stainless steel/cast iron, strong versatility.

AlTiSiN coating: high-temperature resistant non-stick knife, suitable for materials within 60 degrees such as alloy steel/carbon steel/tool steel/stainless steel.

Uncoated applicable materials: 6061/7075 aluminum alloy, die-cast aluminum, aluminum profile, brass/copper, pure aluminum/soft aluminum, PVC, nylon, cork/thin wood.

(3) Risk warning Risk of tool breakage: When the diameter is <0.5mm, the lateral full-edge cutting needs to be disabled (the recommended radial depth of cut ≤ 0.05mm).

Coating maintenance: Clean the cutting edge debris every 20 minutes, and wipe with alcohol to prevent chemical corrosion

Cooling requirements: forced air cooling when processing high-silicon aluminum to avoid aluminum chips melting
