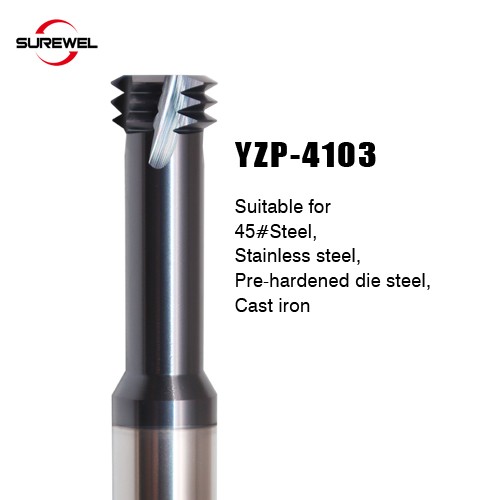

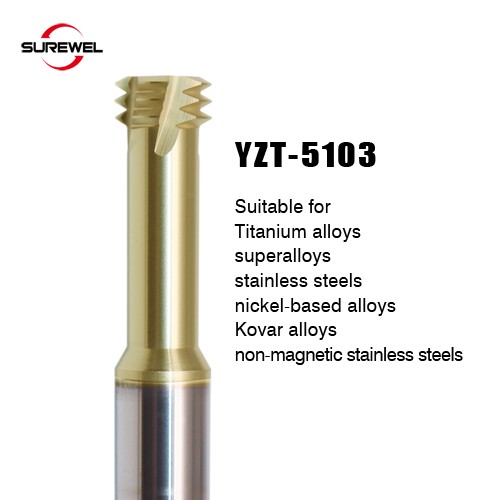

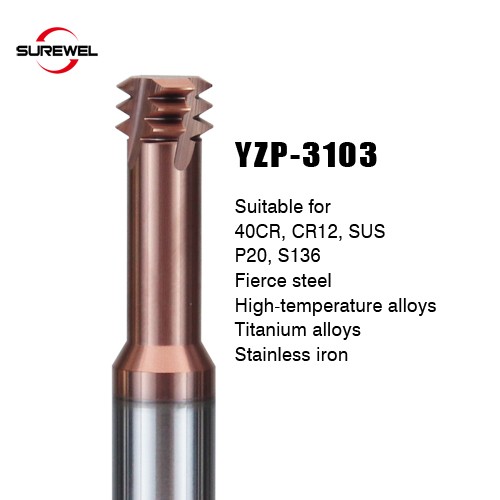

HRC65 Metric Three Teeth Thread Milling

Type: Metric threaded end mill

Brand name: SUREWEL
Material: solid carbide

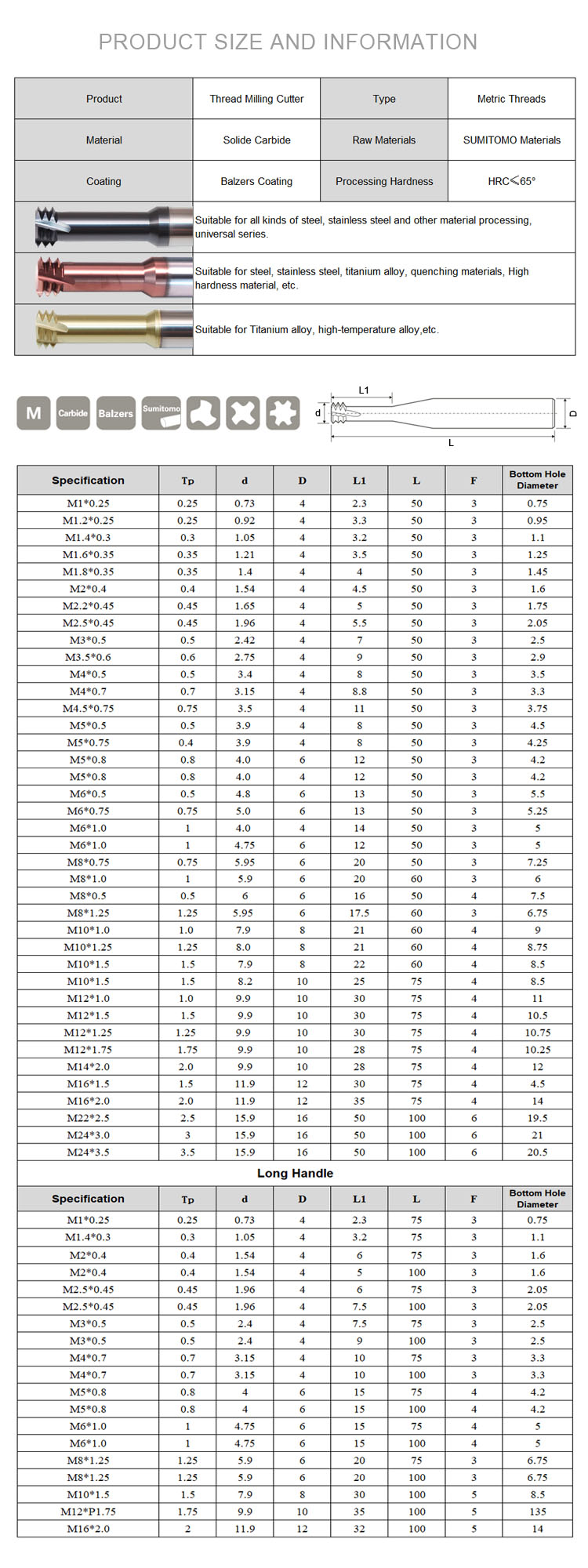

Product Specifications：Pitch (Tp): 0.25-3.5mm covering ultra-fine (M1x0.25) to coarse (M33x3.5)

Bottom hole diameter: 0.75-20.5mm Suitable for pre-drilled hole size, covering ultra-small holes (0.75mm) to large holes (20.5mm)

Balzers Coating: for  aluminium alloys, copper alloys, titanium alloys, high-strength steels, stainless steels, superalloys, composites (carbon fiber reinforced plastics/ceramic matrix composites)

Main Applications:
Precision threading: It is suitable for machining centers and CNC machine tools to complete the milling and forming of metric internal/external threads (such as M2-M33 threads).
Complex working conditions: blind hole thread bottom forming, deep hole threading (effective depth up to 50mm).
